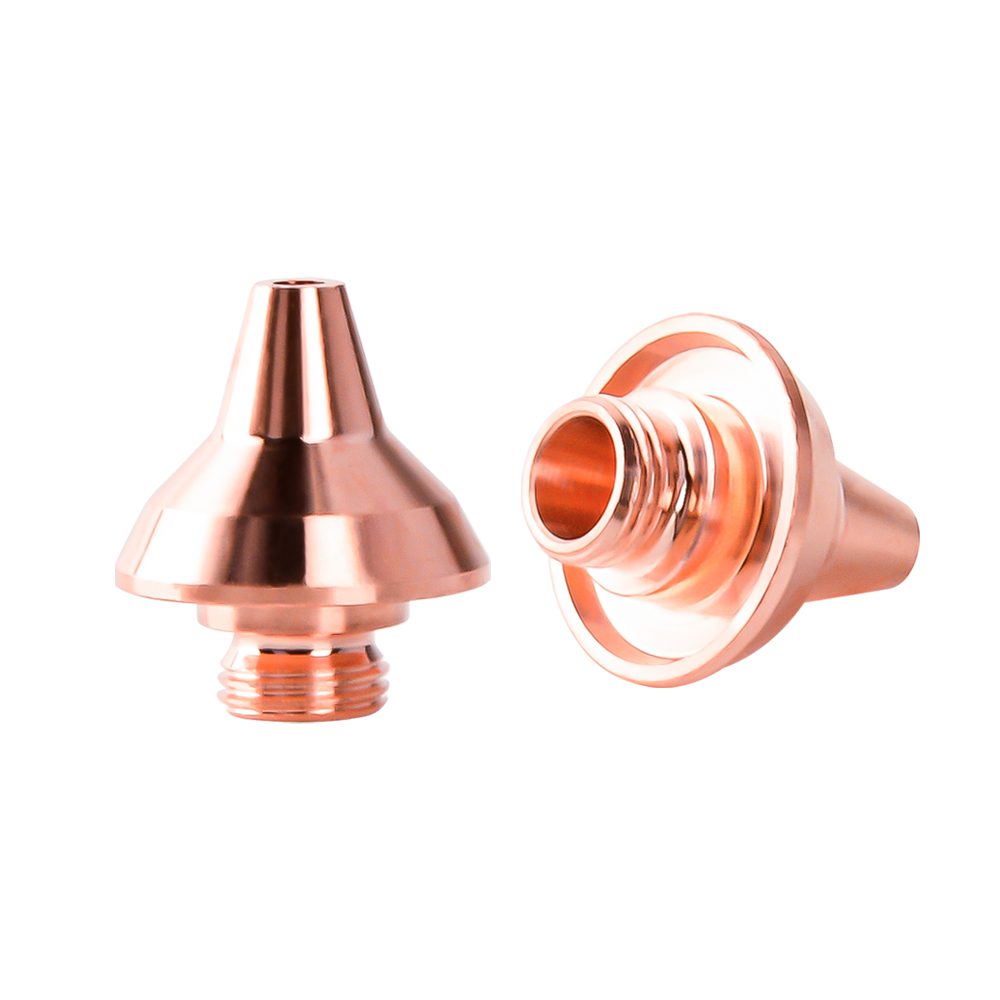

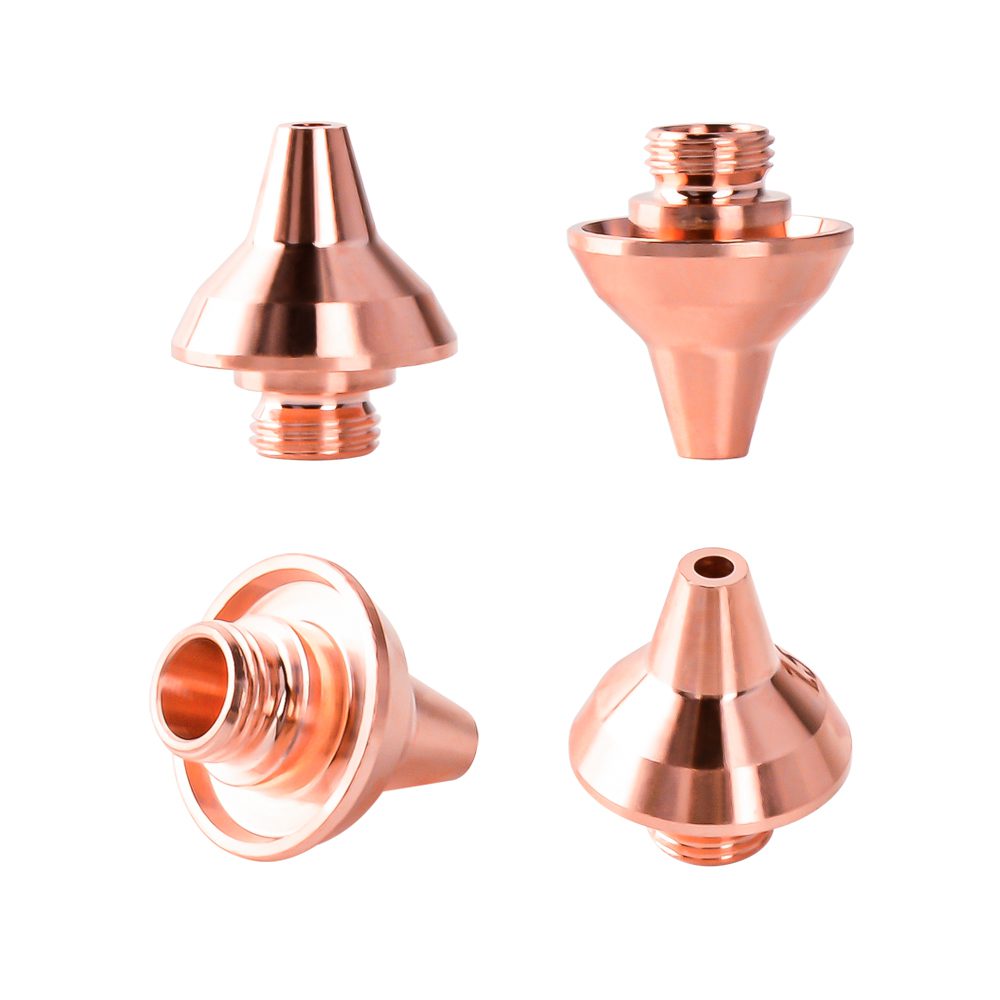

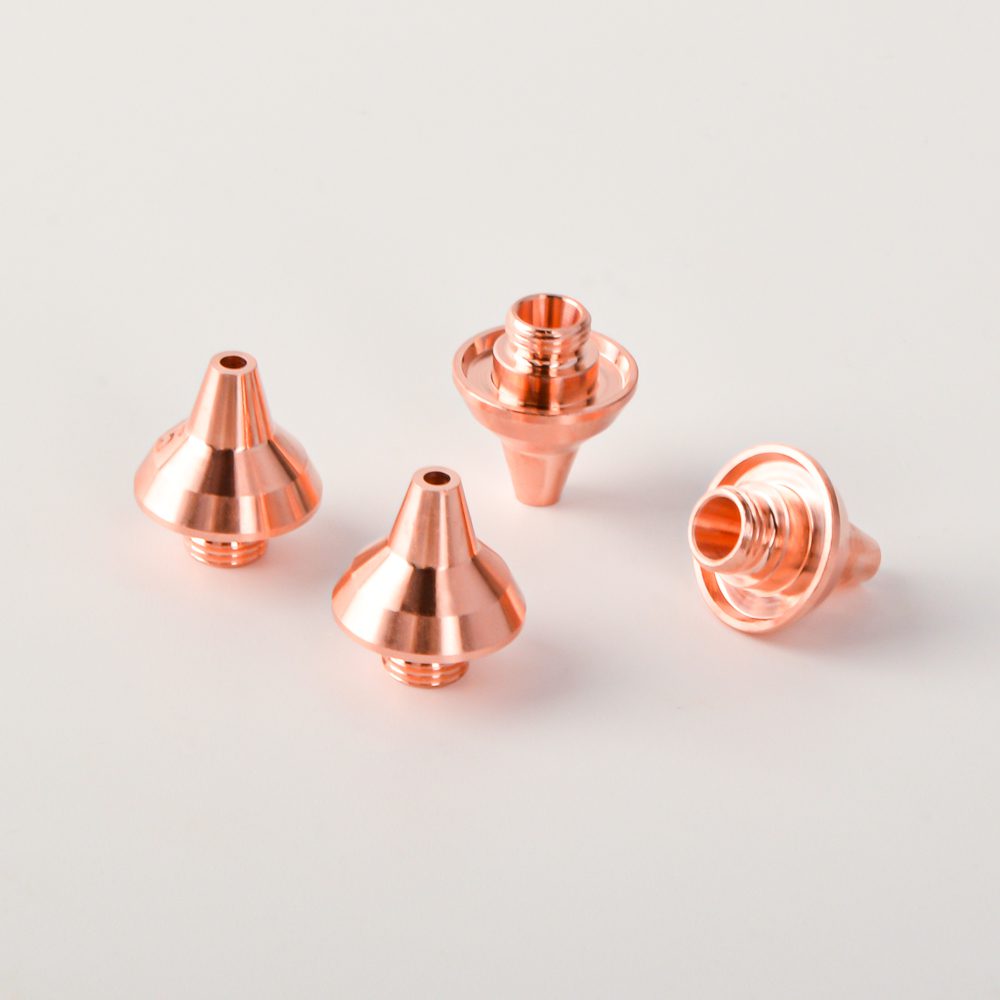

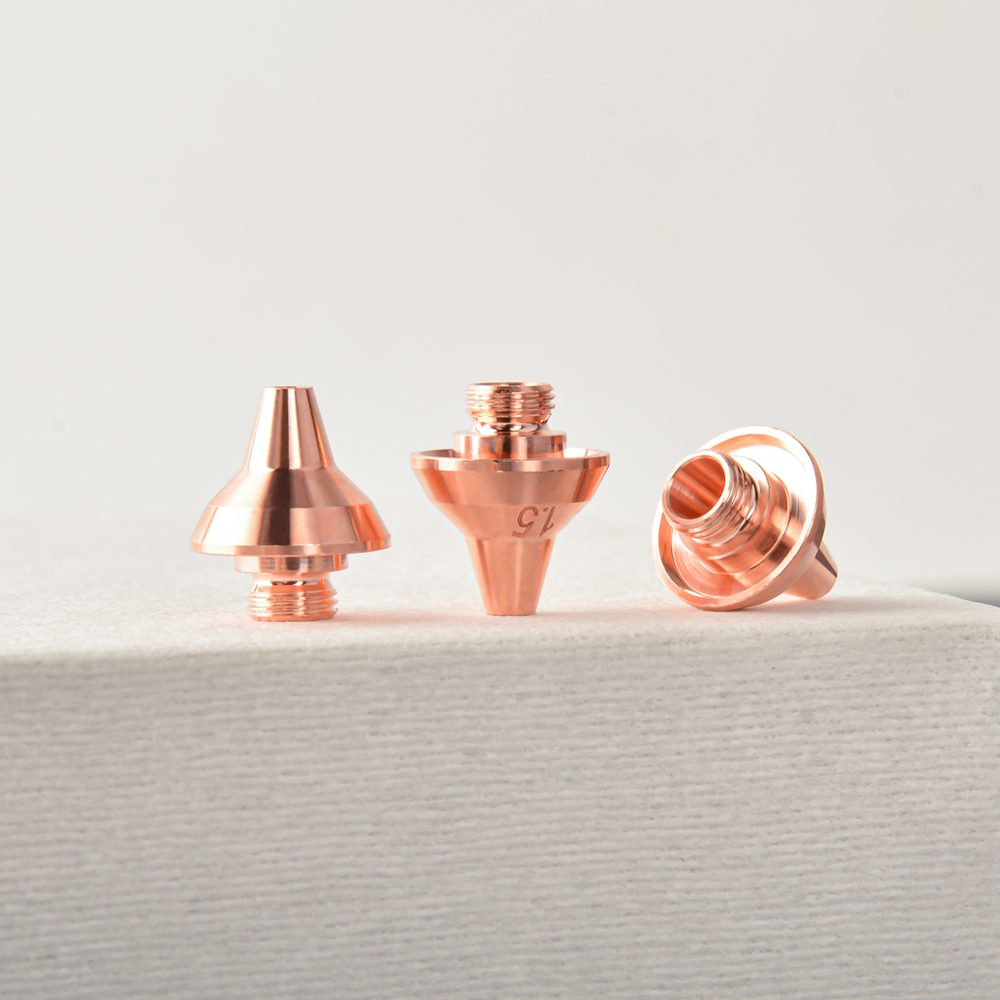

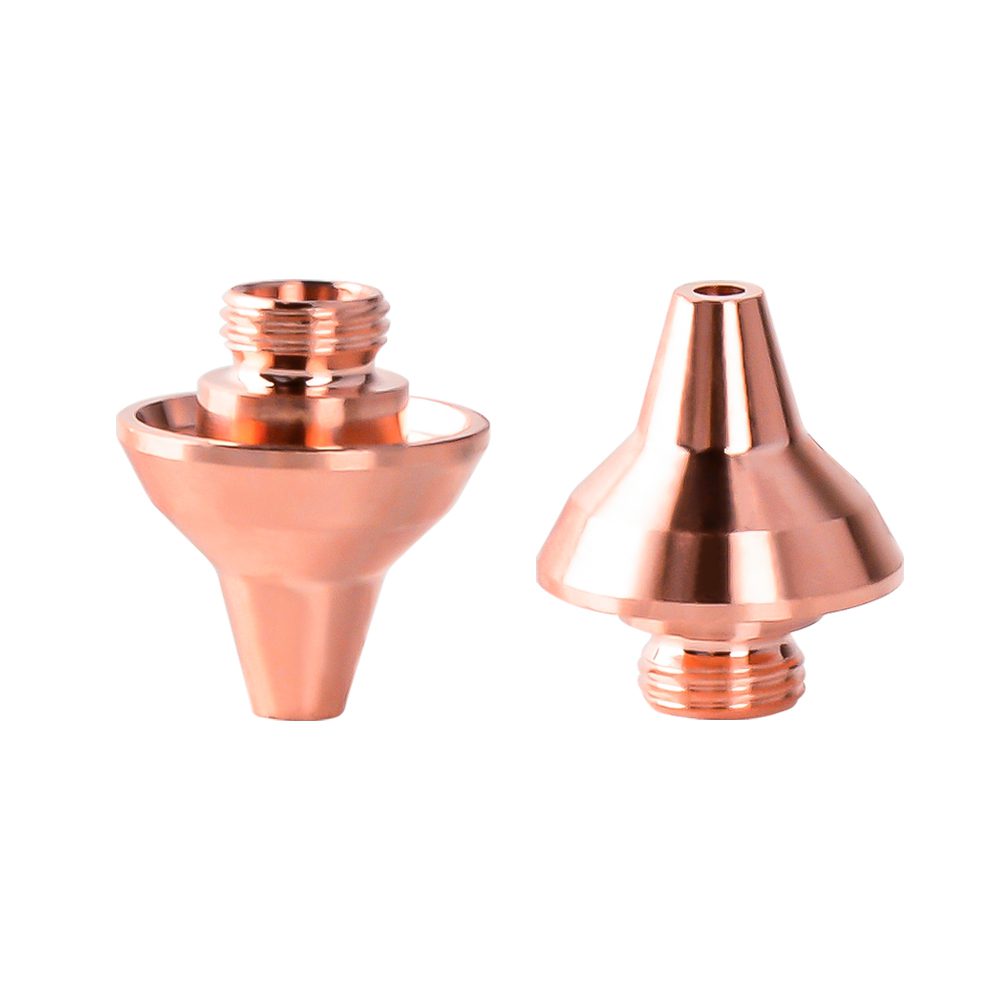

ZNK D10.5 H12 M5 Mazak Laser Nozzle — Mazak Optiplex Compatible
The ZNK D10.5 H12 M5 is a precision replacement nozzle designed specifically for Mazak fiber laser cutting machines. Its 10.5 mm diameter and M5 mounting thread match the original specification exactly, ensuring excellent cutting performance and a longer service life.

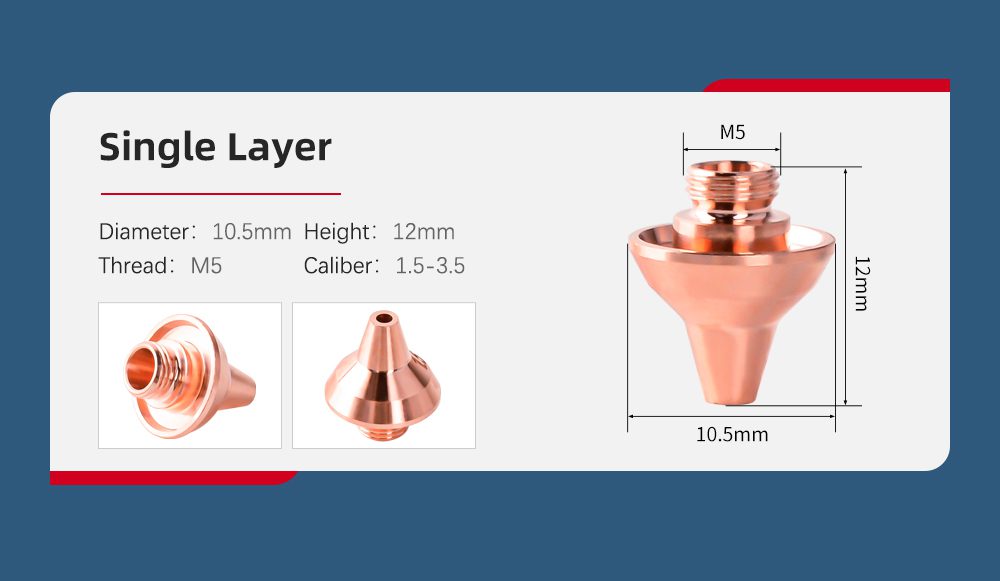

Technical Specifications
| Nozzle Diameter (D) | 10.5 mm |
| Height (H) | 12 mm |
| Thread Size (M) | M5 |
| Compatible Brand | Mazak |
| Material | High-purity Copper |
| Processing | CNC precision machining |
Compatible Cutting Heads
- Mazak Optiplex 3015 / 4020 / 6020 series
- Mazak Fiber laser cutting systems
- Mazak specific laser heads with M5 nozzle seat
Key Features
- OEM Compatibility — Exact dimensional match for Mazak machines, ensuring seamless integration.
- Optimized Gas Flow — Specialized internal geometry designed for Mazak’s assist gas systems.
- Superior Conductivity — Made from high-quality copper for optimal thermal performance.
- Smooth Surface Finish — Polished to prevent slag adhesion and maintain cutting stability.
Applications
- Automotive component precision cutting
- Sheet metal fabrication (Carbon/Stainless/Aluminum)
- Electronics enclosure manufacturing
- Kitchenware and household appliance production
- General industrial Mazak fiber laser applications
Why Choose ZNK?
- Direct Factory Quality — Reliable performance at a competitive manufacturer price.
- Verified Fitment — Every batch is tested to ensure 100% compatibility with Mazak systems.
- Strict Tolerance Control — Dimensional accuracy maintained within ±0.02mm.
- Global Availability — Large stock available for rapid worldwide shipping.
ZNK D10.5 H12 M5 Mazak Laser Nozzle
The D10.5 H12 M5 is a precision replacement nozzle specifically designed for Mazak fiber laser cutting machines. With a 10.5mm diameter and M5 thread, it matches the original nozzle specifications for seamless compatibility.

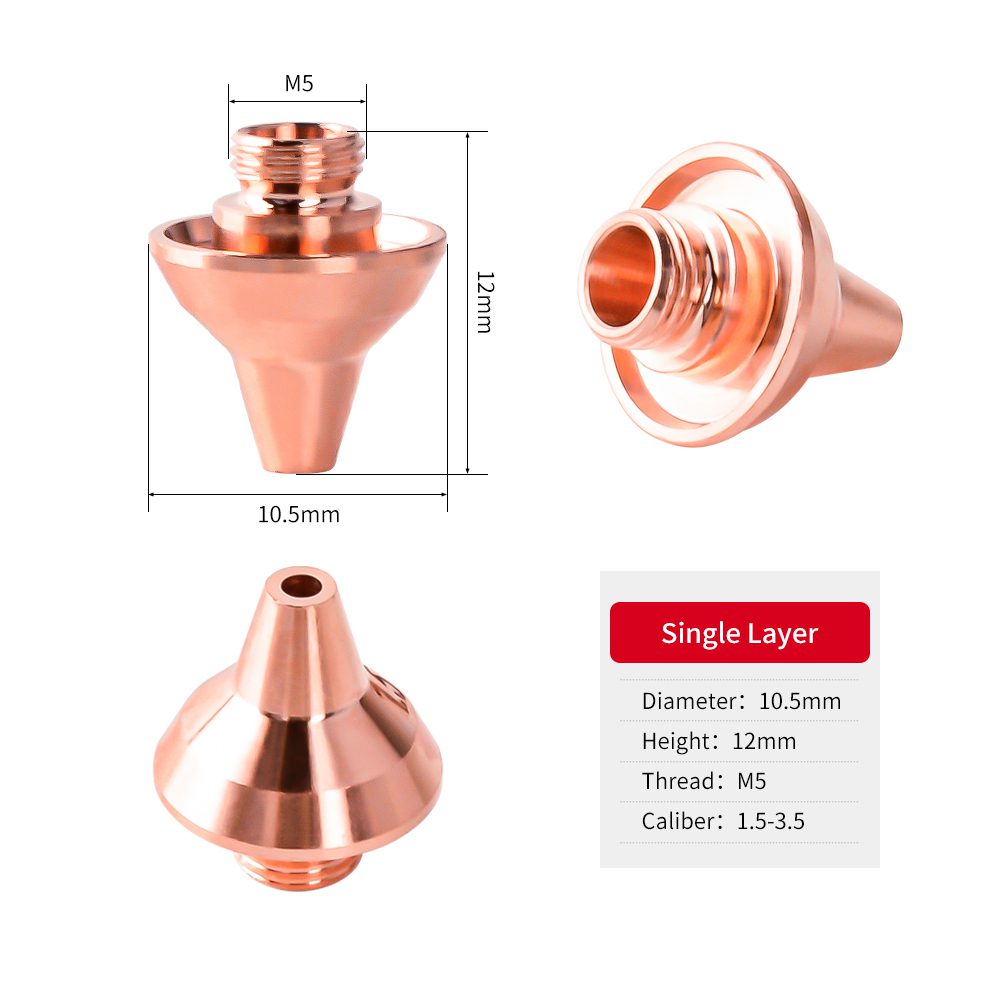

Technical Specifications
| Parameter | Value |
|---|---|
| Nozzle Diameter (D) | 10.5 mm |
| Nozzle Height (H) | 12 mm |
| Thread Size (M) | M5 |
| Material | Pure Copper |
| Compatible Brand | Mazak |
| Processing | CNC precision machining |
Compatible Machines
- Mazak Optiplex 3015 / 4020 / 6020 series
- Mazak Fiber laser cutting systems
- Other laser heads with D10.5 H12 M5 nozzle specifications
Application Scenarios
- Sheet metal processing (carbon steel, stainless steel, aluminum)
- Precision thin-gauge cutting (0.5–6mm)
- Electronics chassis and enclosure fabrication
- Kitchenware and appliance manufacturing
Installation Instructions
- Turn off the Mazak laser and allow the cutting head to cool completely
- Remove the existing nozzle by unscrewing the M5 thread counterclockwise
- Inspect and clean the nozzle seat — remove any slag or debris
- Screw in the new D10.5 H12 M5 nozzle and hand-tighten
- Verify coaxial alignment through the machine’s built-in alignment system
- Run a test cut to confirm proper gas flow and cutting quality
Why Choose ZNK?
- Exact dimensional match with original Mazak nozzle specifications
- Cost-effective alternative to OEM parts — up to 60% savings
- Batch tested for dimensional accuracy (tolerance ≤ ±0.02mm)
- Stock available for immediate shipment
