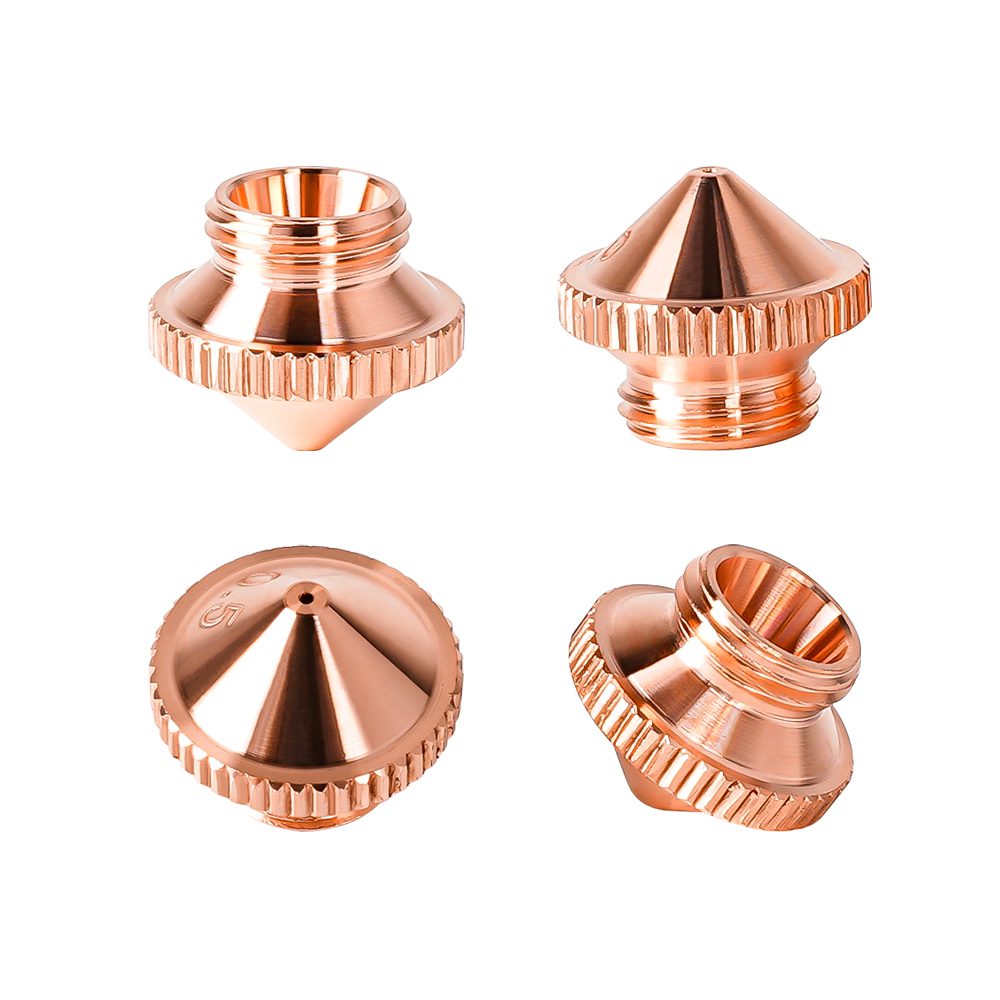

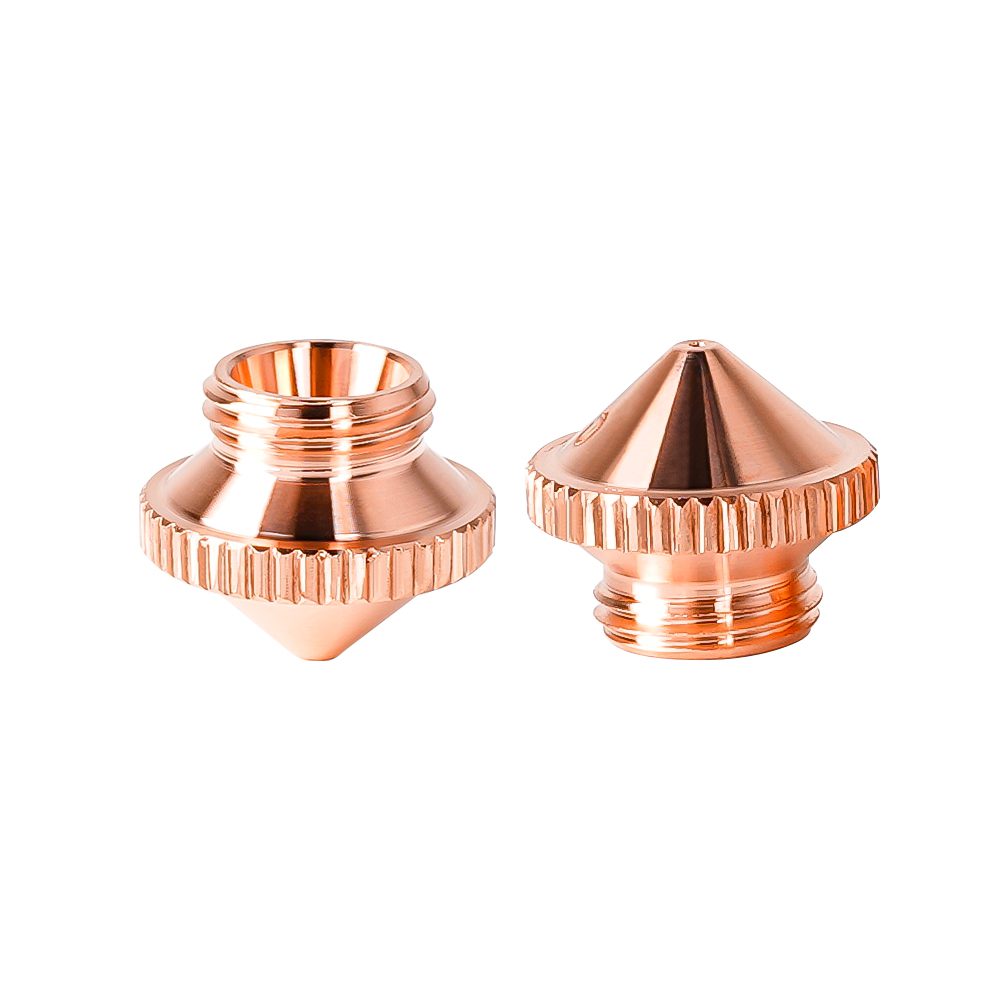

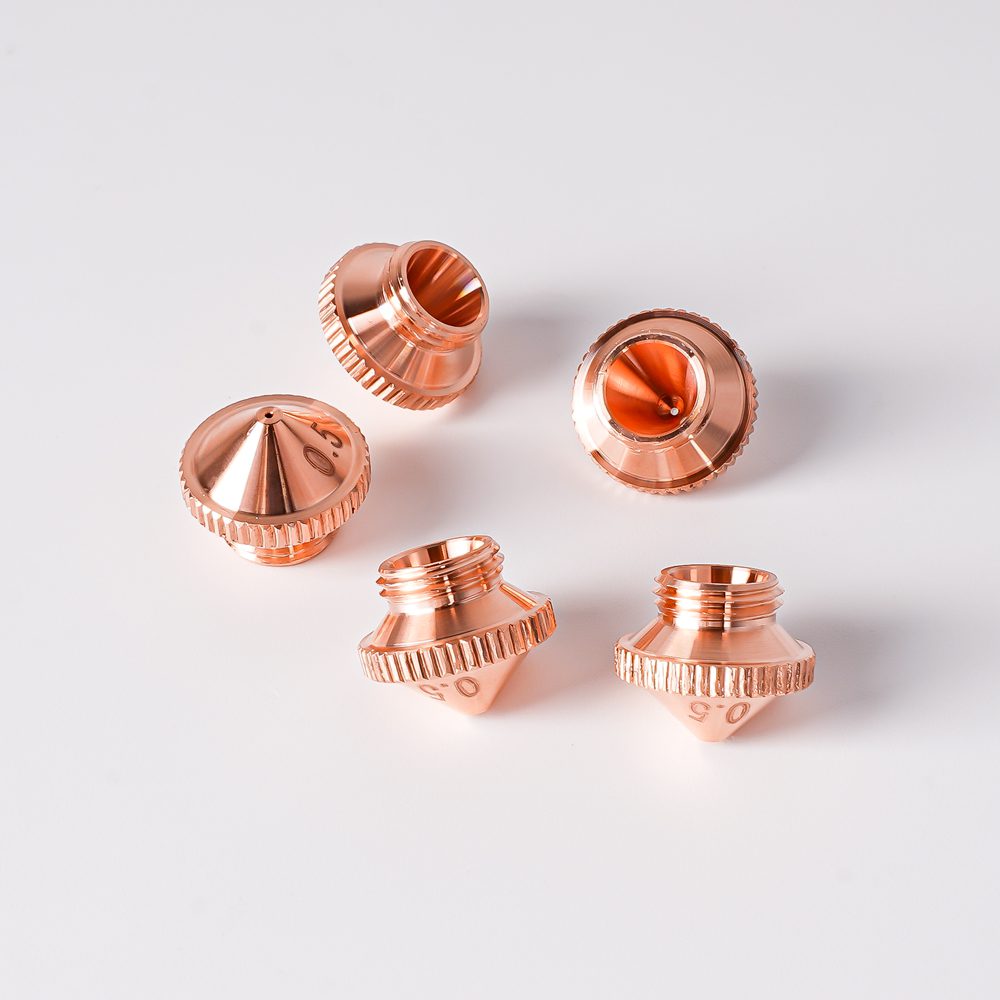

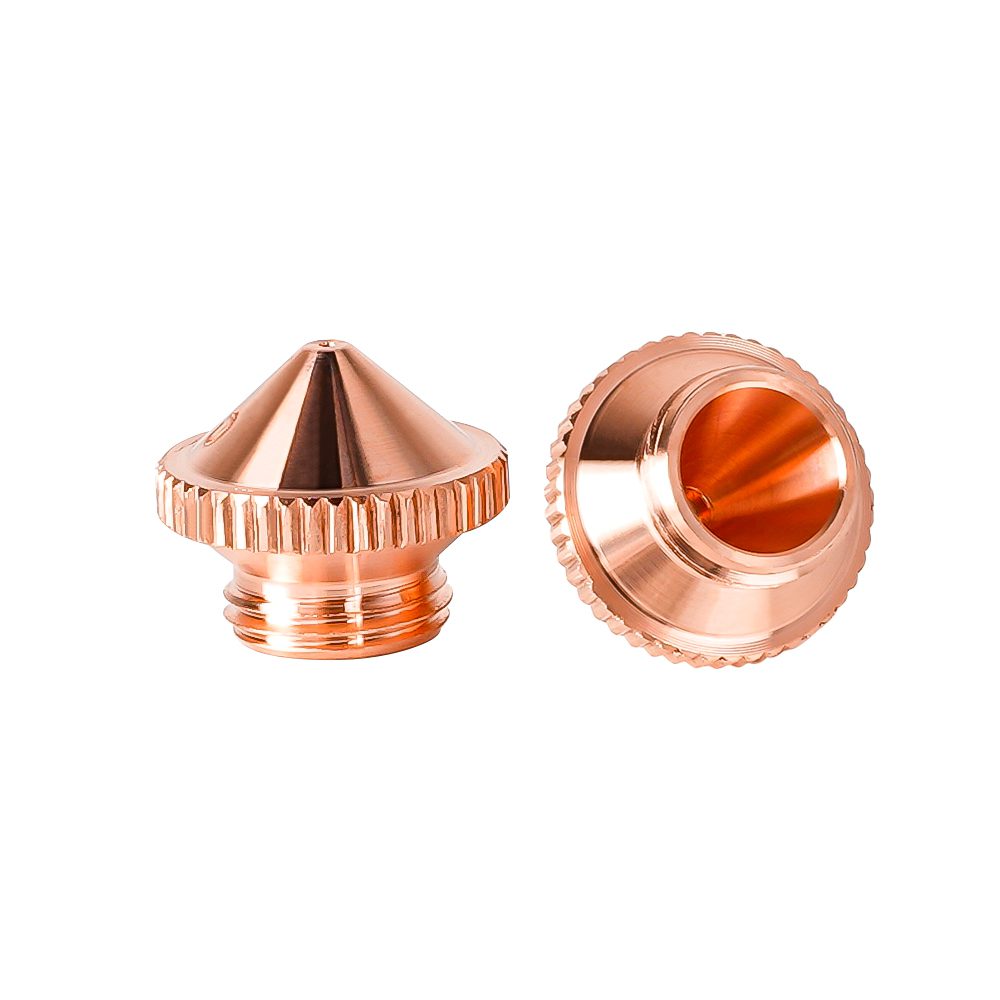

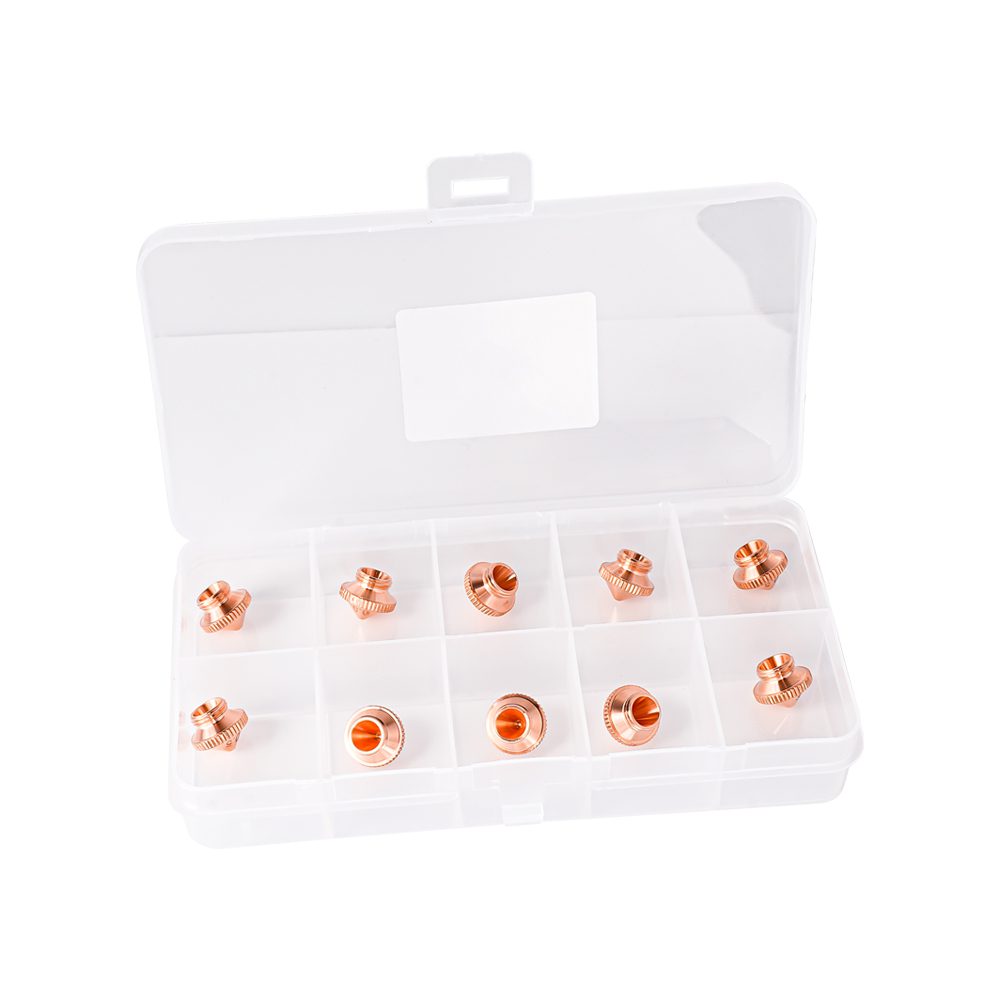

ZNK D12 H10 M8 Laser Nozzle — Standard Fiber Laser Cutting Nozzle
The D12 H10 M8 is a standard-size copper nozzle widely used in fiber laser cutting applications. The 12mm diameter and M8 mounting thread make it compatible with a broad range of cutting heads on the market.

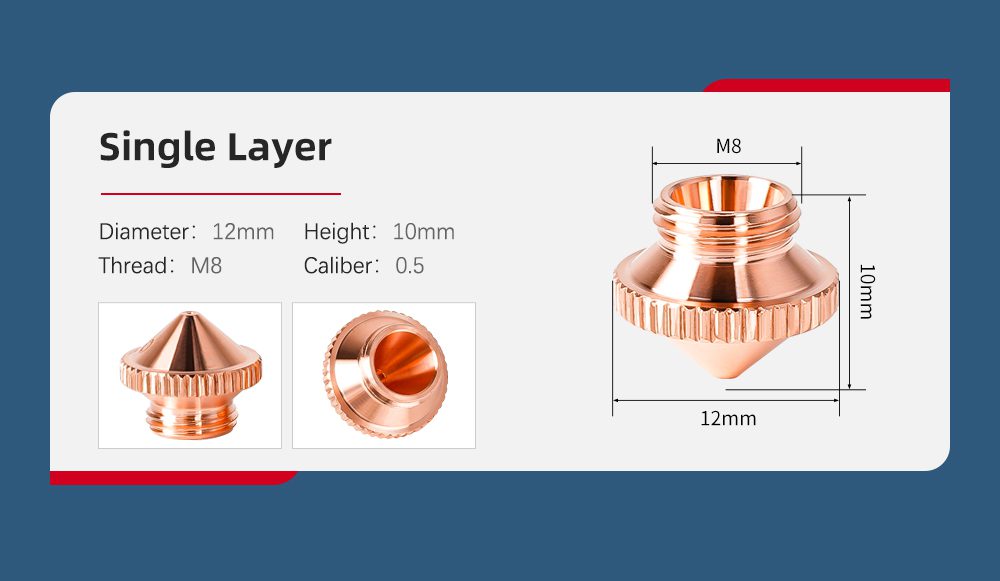

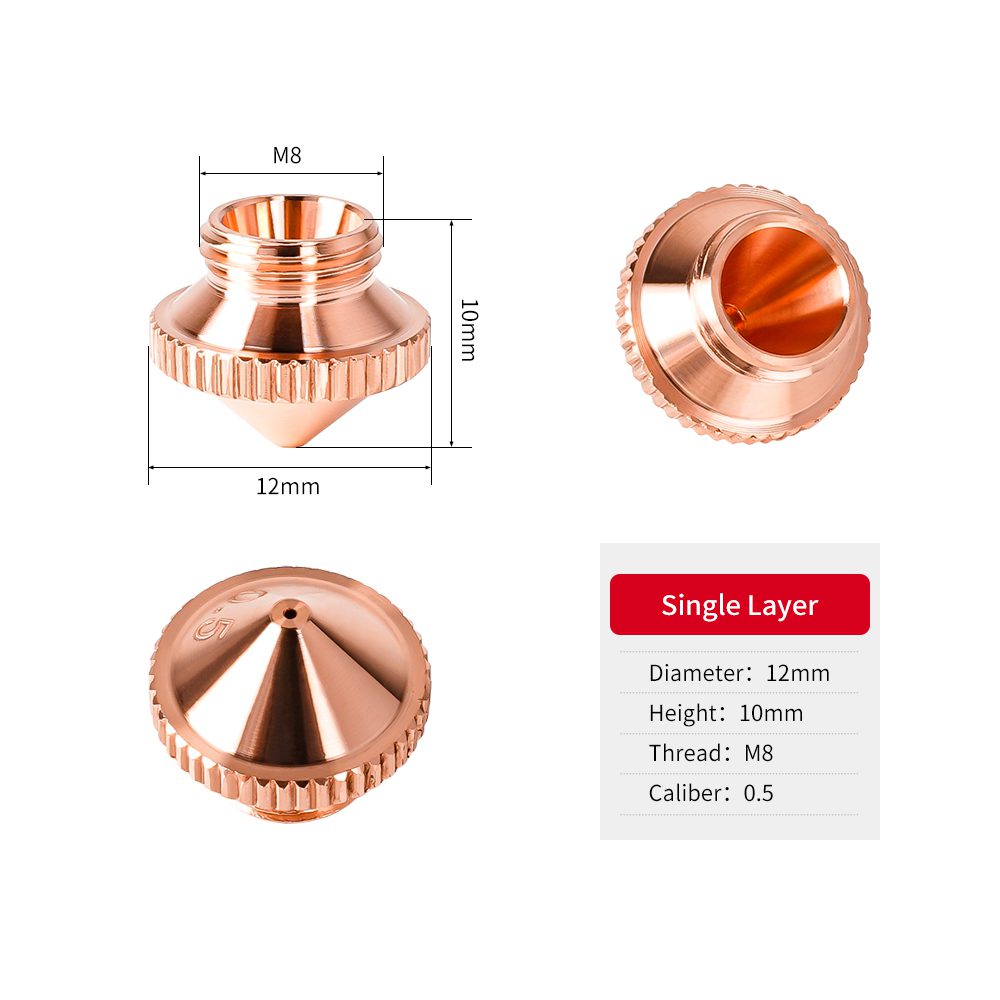

Technical Specifications
| Parameter | Value |
|---|---|
| Nozzle Diameter (D) | 12 mm |
| Nozzle Height (H) | 10 mm |
| Thread Size (M) | M8 |
| Material | Pure Copper |
| Inner Bore Options | 1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm |
| Processing | CNC precision machining |
Compatible Cutting Heads
- Raytools BM110, BM111, BT240, BS series
- WSX laser cutting heads
- BOCI cutting heads
- Generic fiber laser cutting heads with M8 nozzle mount
Application Scenarios
- Carbon steel and stainless steel sheet cutting (1–10mm)
- Aluminum and brass sheet cutting
- General fabrication workshops
- Metal signage and decorative cutting
Installation Instructions
- Power off the laser machine and wait for the cutting head to cool
- Unscrew the old M8 nozzle counterclockwise
- Clean the mounting thread and nozzle seat
- Screw in the new D12 H10 M8 nozzle clockwise by hand
- Use a wrench to tighten securely — do not over-torque
- Check the nozzle center alignment and gas flow before cutting
Why Choose ZNK?
- Universal compatibility with most standard laser cutting heads
- Available in multiple inner bore sizes for different cutting thicknesses
- Factory-direct pricing with tiered discounts for bulk orders
- ISO quality management system certified production
