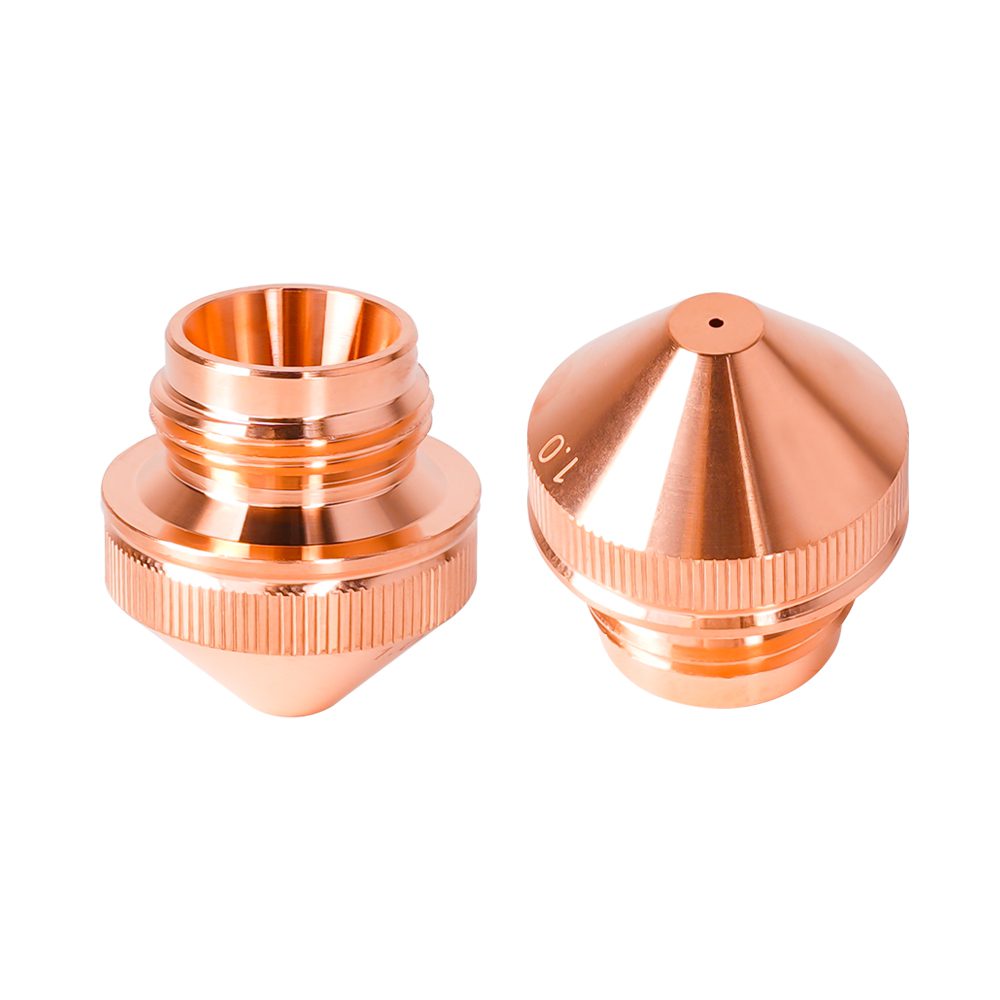

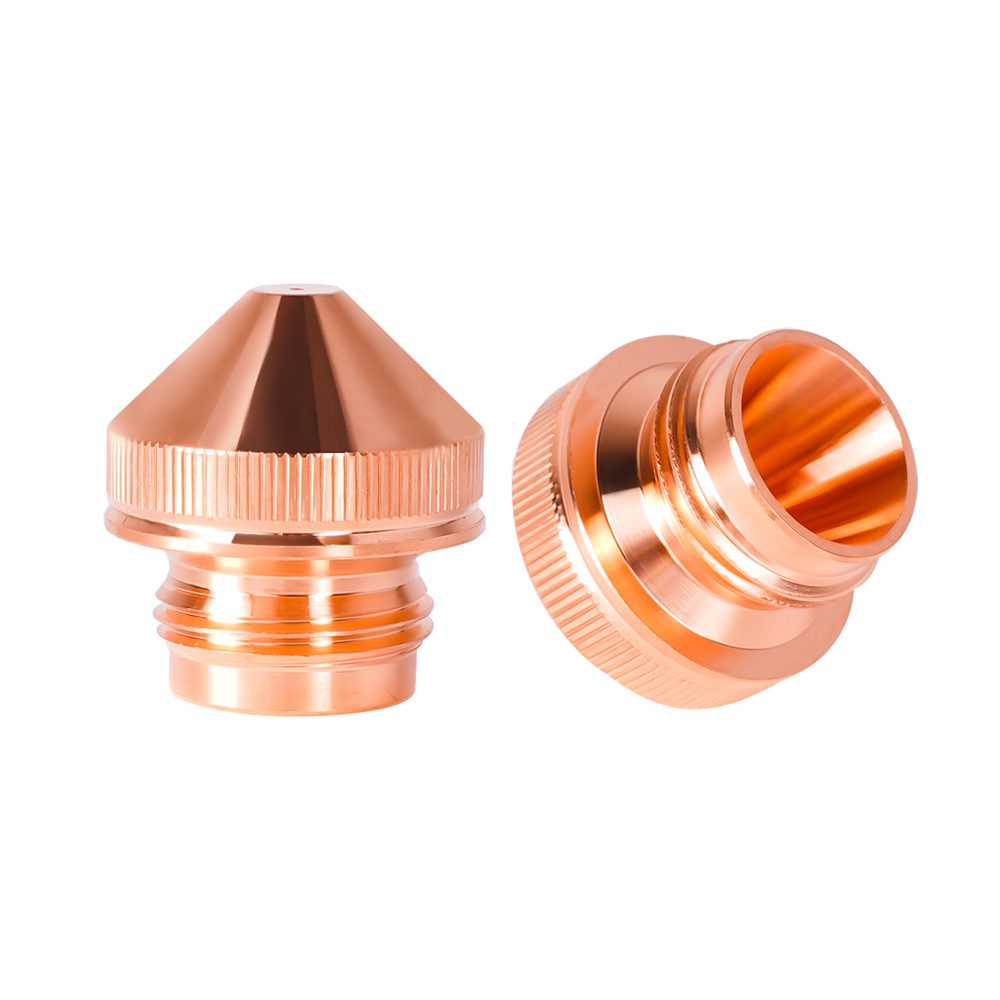

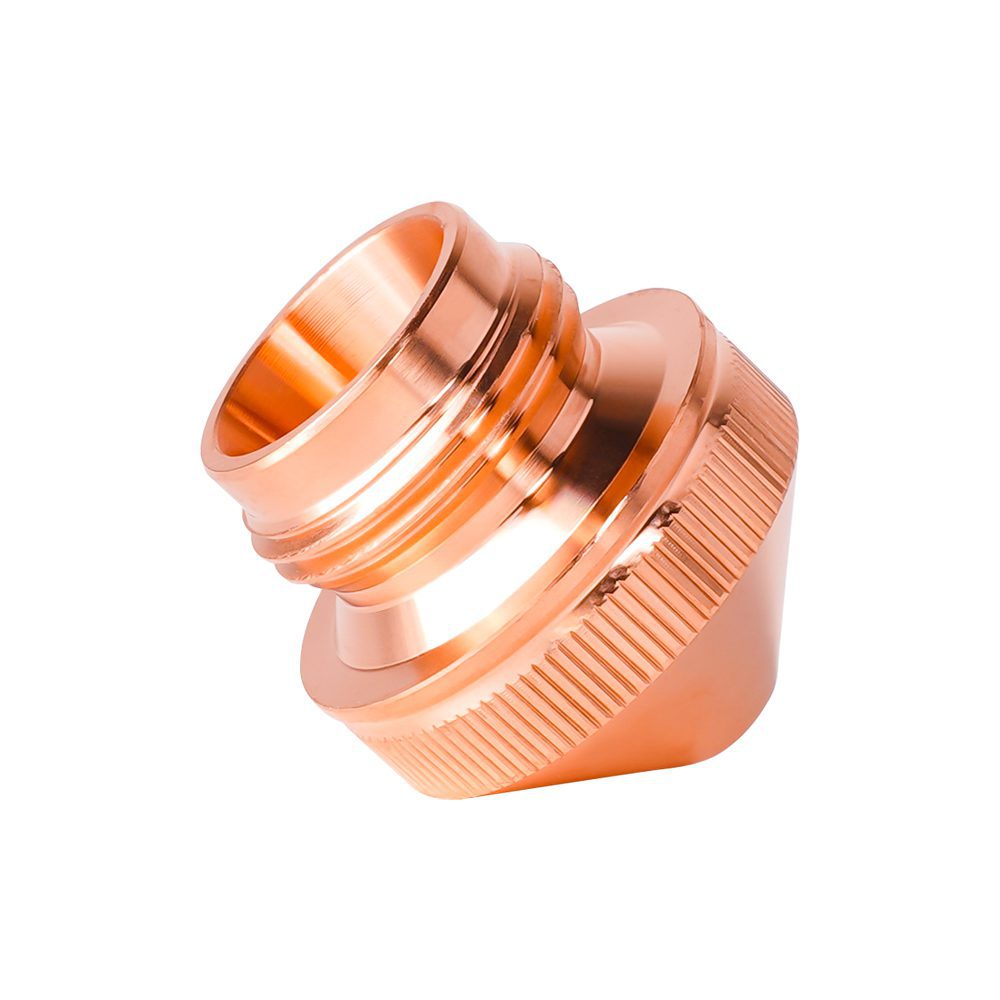

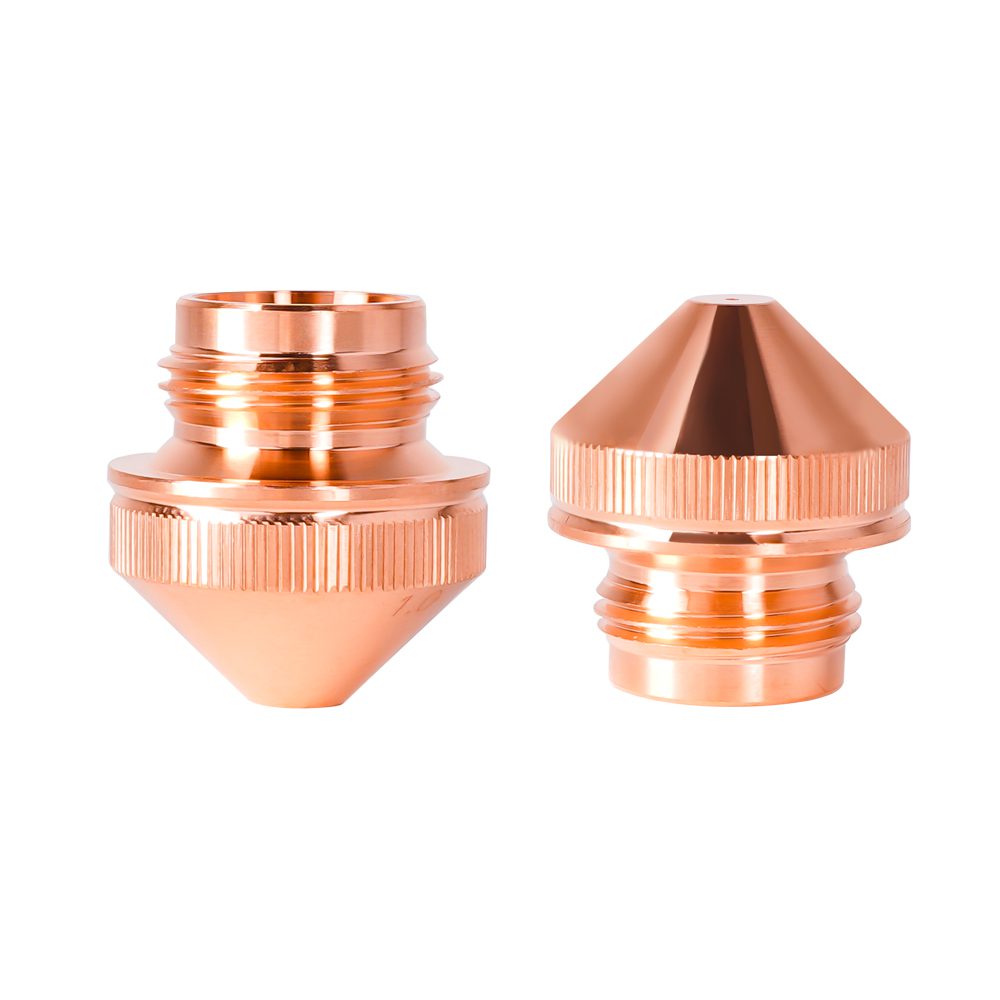

ZNK D27 H29 M20.3 Laser Nozzle — High-Power Cutting Nozzle
The D27 H29 M20.3 laser nozzle is a large-diameter nozzle engineered for high-power fiber laser cutting applications. With a 27mm outer diameter and M20.3 mounting thread, it provides superior gas coverage and heat resistance for thick plate cutting.

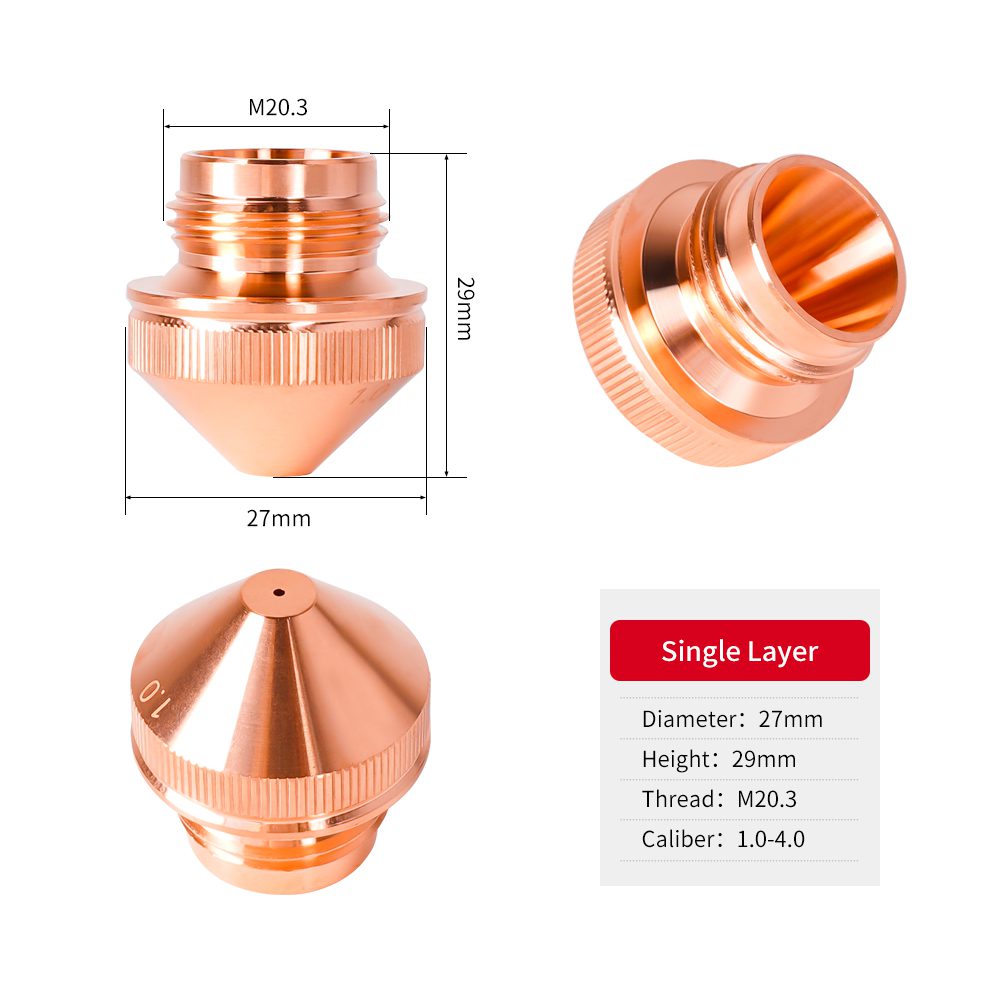

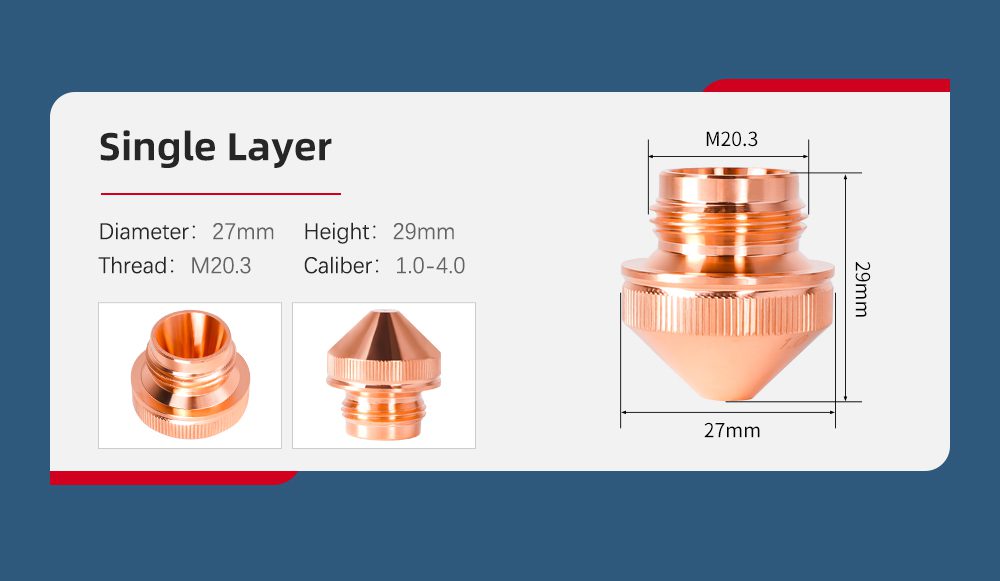

Technical Specifications
| Parameter | Value |
|---|---|
| Nozzle Diameter (D) | 27 mm |
| Nozzle Height (H) | 29 mm |
| Thread Size (M) | M20.3 |
| Material | Pure Copper |
| Inner Bore Options | 1.5mm / 2.0mm / 2.5mm / 3.0mm |
| Processing | CNC precision machining |
| Max. Laser Power | Up to 30KW |
Compatible Cutting Heads
- Trumpf TruLaser 1030/3040/5000 series
- Bystronic ByStar/BySprint series
- Precitec ProCutter HP series
- High-power fiber laser cutting heads with M20.3 nozzle seat
Application Scenarios
- Thick carbon steel cutting (10–30mm)
- Thick stainless steel cutting (8–25mm)
- Shipbuilding and heavy industry
- Steel structure and bridge construction
- Industrial pipe and tube cutting
Installation Instructions
- Ensure the cutting head is powered off and cooled
- Remove the protective cap and existing nozzle
- Clean the M20.3 mounting surface thoroughly
- Insert the D27 H29 M20.3 nozzle, align the thread, and tighten firmly
- Check gas flow through the nozzle — ensure no blockage or leakage
- Perform test cut on scrap material to verify focus and alignment
Why Choose ZNK?
- Designed for high-power applications (10KW–30KW)
- Each nozzle undergoes air pressure leak testing before shipment
- Supports custom inner bore sizes for specific cutting requirements
- Competitive factory pricing with bulk order discounts
