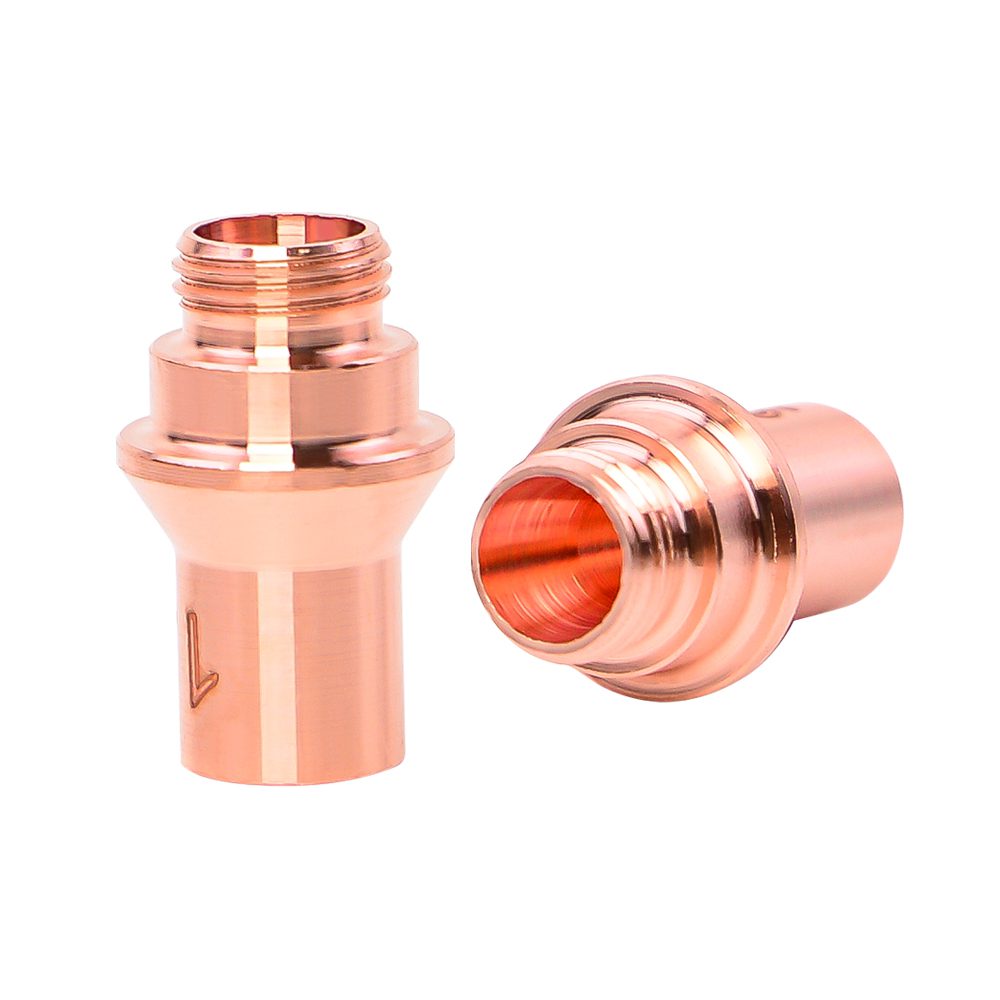

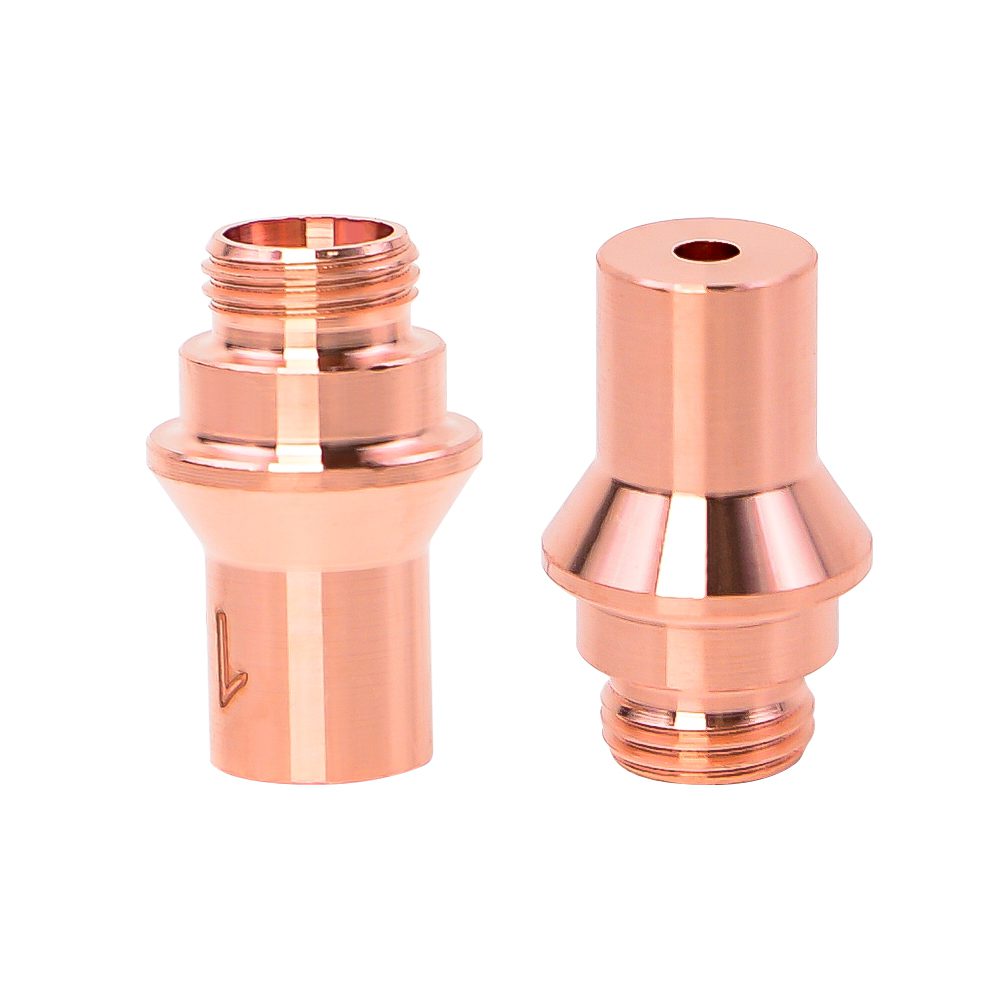

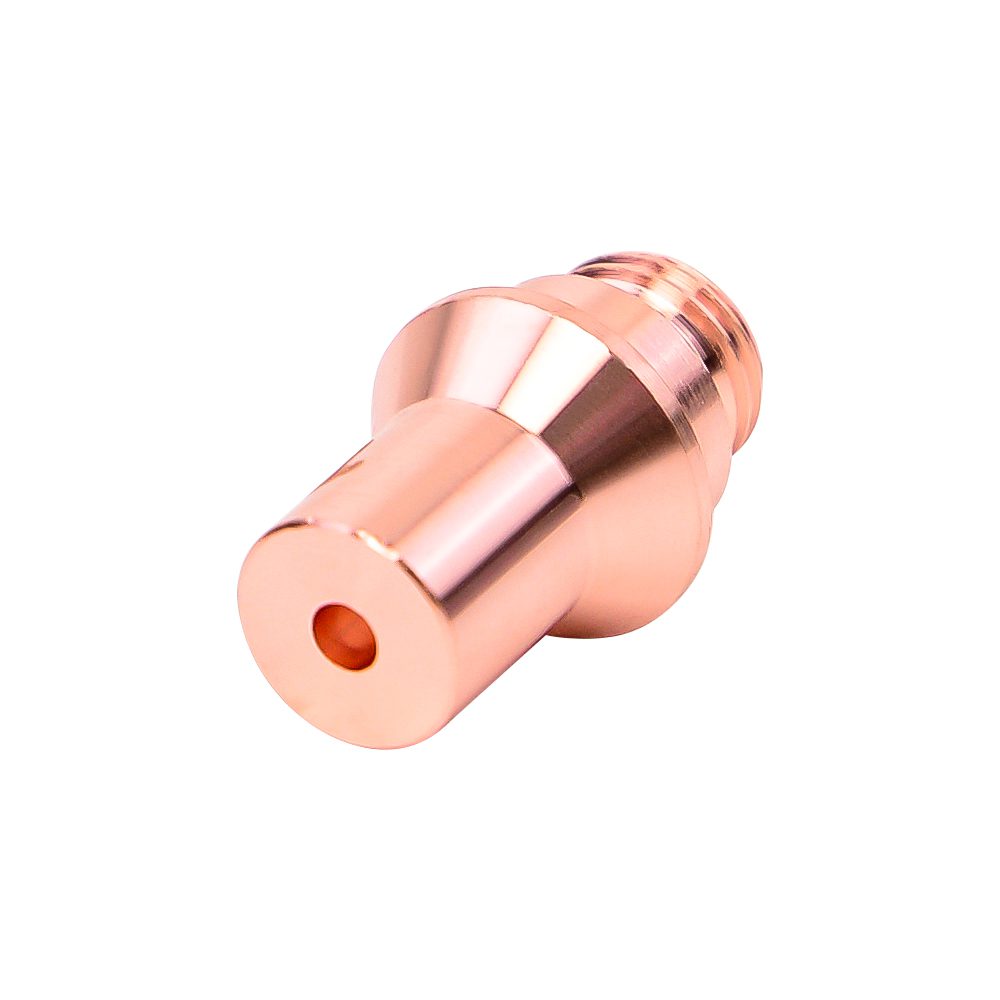

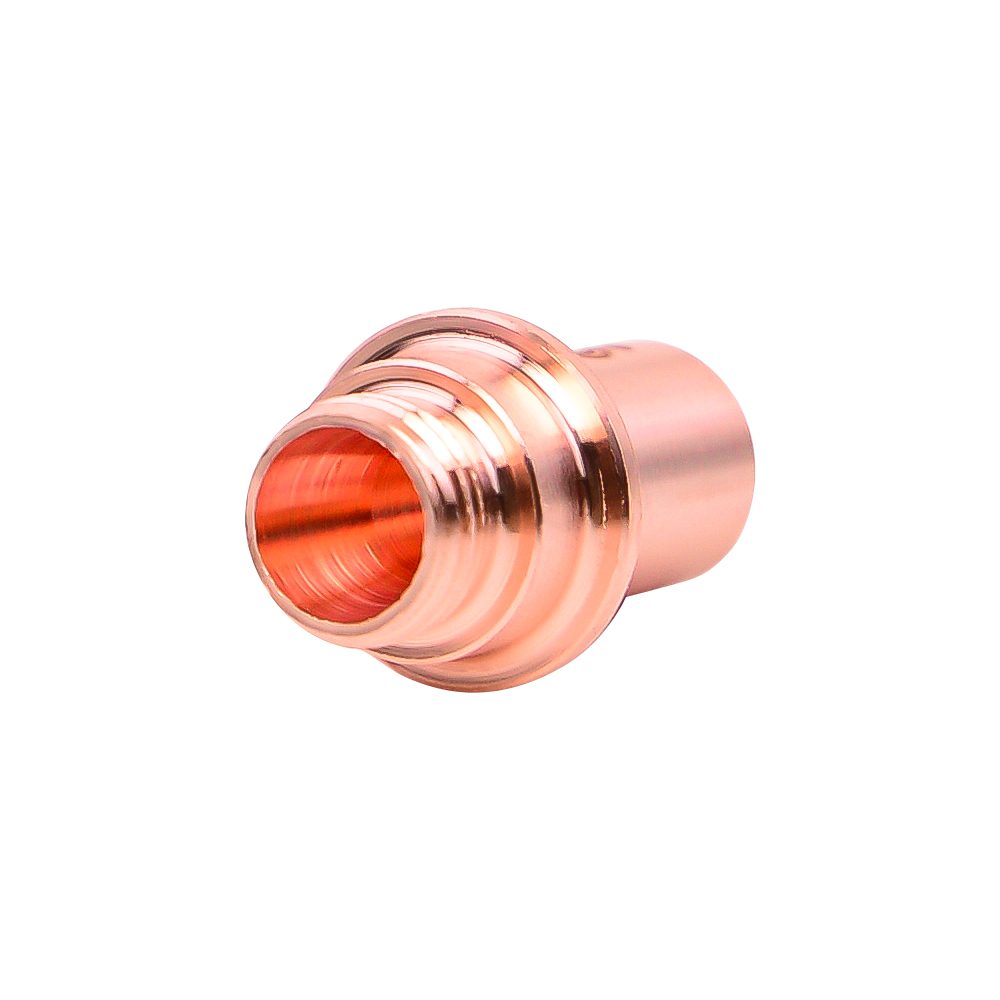

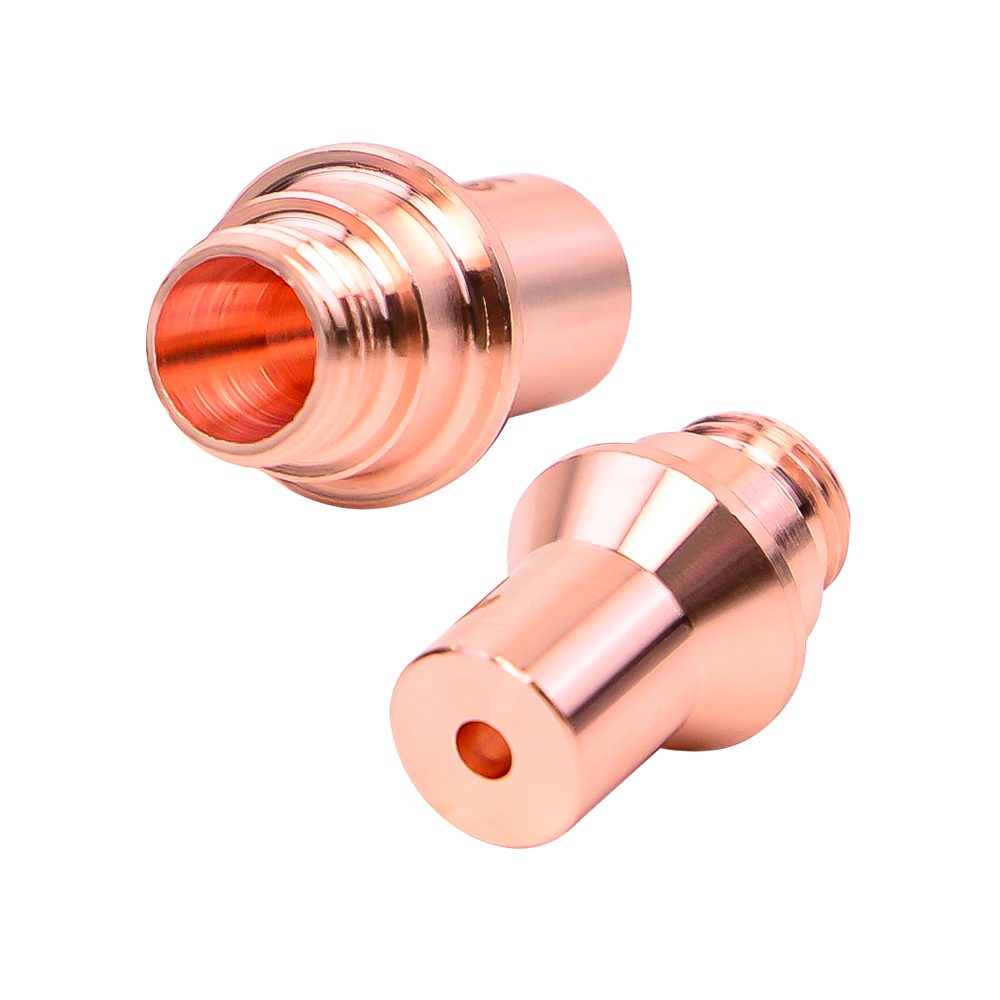

ZNK d7.5 H12 M5 3D Laser Nozzle — High-Precision 3D Cutting Nozzle
The d7.5 H12 M5 3D Laser Nozzle is a specialized consumable designed for advanced 3D laser cutting applications. With its ultra-compact 7.5mm diameter and 12mm height, this nozzle provides the necessary clearance and maneuverability for complex 3D geometries and robotic laser cutting paths. The M5 mounting thread ensures a secure fit on precision 3D cutting heads, delivering focused gas flow and exceptional cutting accuracy for automotive parts, curved surfaces, and intricate metal components.

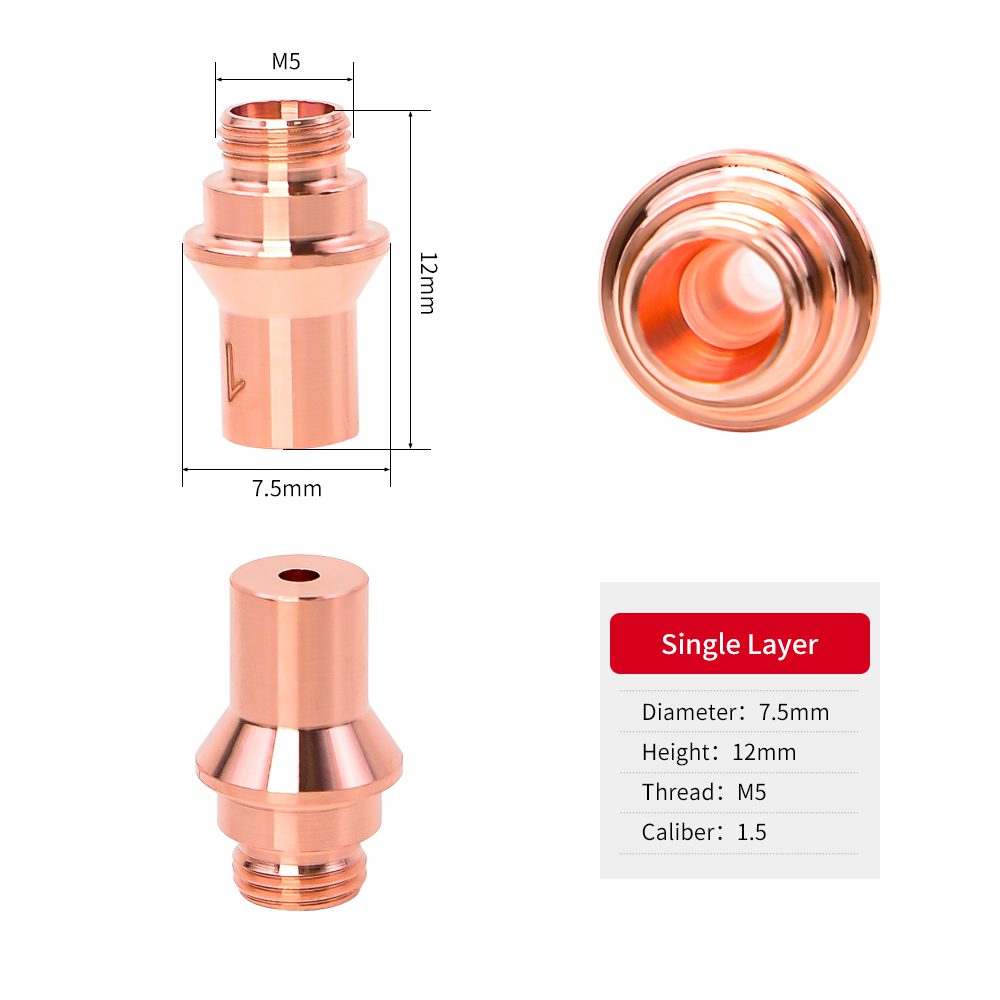

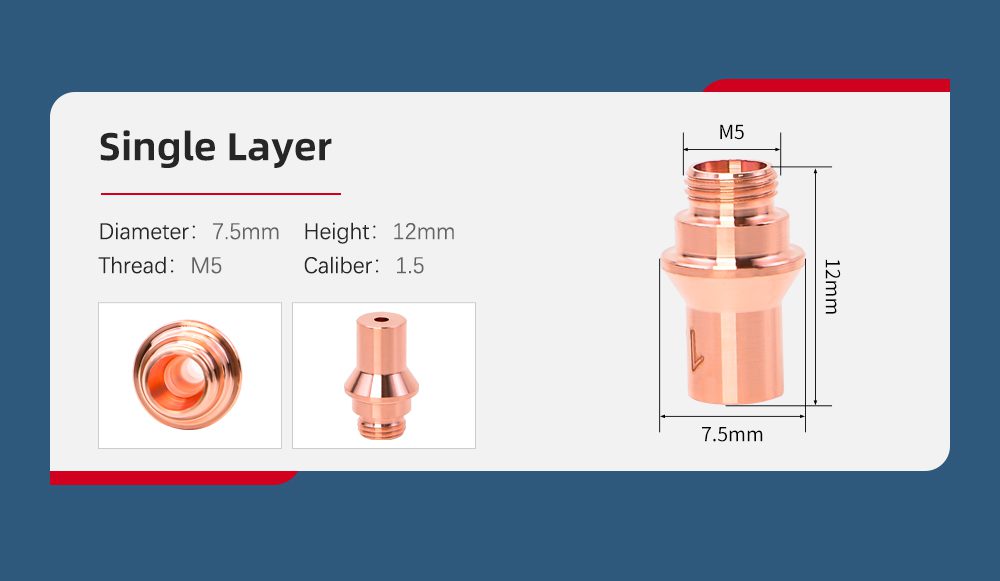

Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ZNK |
| Model | d7.5 H12 M5 |
| Application Type | 3D Laser Cutting |
| Nozzle Diameter (d) | 7.5 mm |
| Nozzle Height (H) | 12 mm |
| Thread Size (M) | M5 |
| Material | High-Conductivity Copper |
| Processing | Multi-axis CNC precision turning |

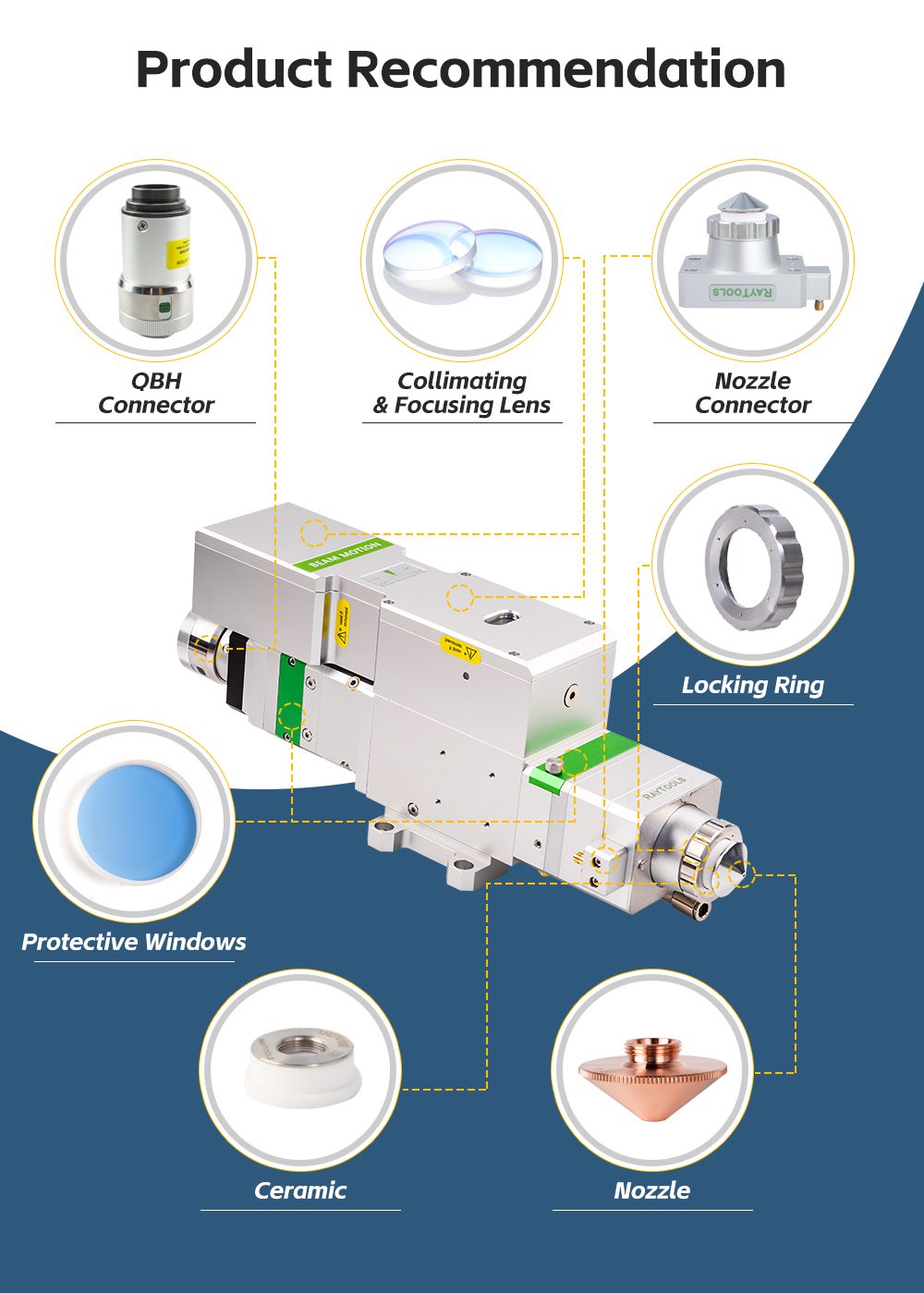

Compatible Cutting Heads
- 3D Robotic fiber laser cutting heads
- Precitec 3D series
- Raytools 3D cutting systems
- Custom 3D laser heads with M5 mount
Key Features
- Compact Geometry — Specifically engineered for 3D cutting to minimize interference with workpieces.
- High-Speed Gas Flow — Optimized internal bore for stable gas dynamics at high pressures.
- Excellent Heat Resistance — Premium copper material ensures long life and stable performance under high laser power.
- Precision M5 Thread — High-tolerance threading for easy installation and perfect alignment.
Applications
- Automotive 3D part trimming (A-pillars, B-pillars)
- Aerospace component fabrication
- Hydroformed parts cutting
- Intricate architectural metal models
Why Choose ZNK?
- Specialized 3D Consumables — We understand the unique requirements of 3D laser cutting technology.
- Superior Quality Control — Multi-stage inspection ensures every nozzle meets our precision standards.
- Competitive Factory Pricing — Professional-grade 3D nozzles at direct-to-customer prices.
- Global Availability — Fast shipping options to keep your 3D production lines running smoothly.
