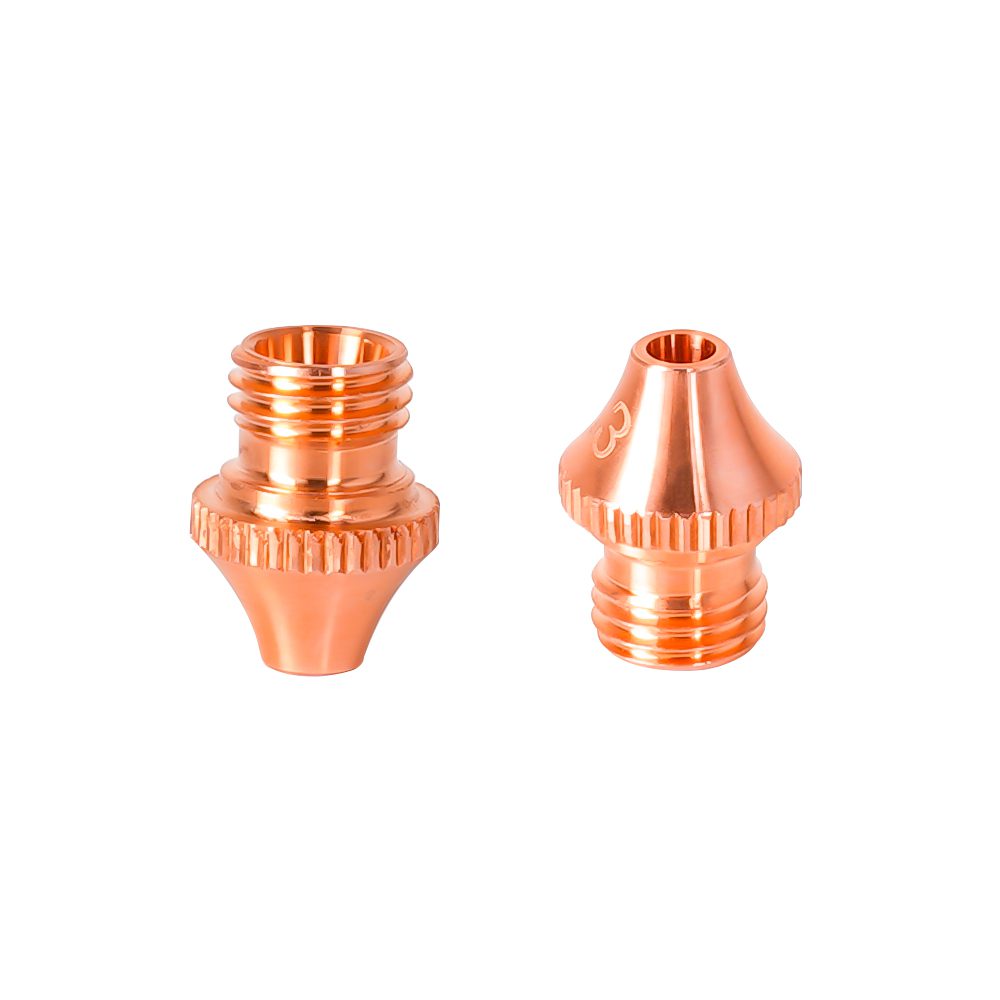

ZNK D8 H10 M6 Laser Nozzle — Precision Fiber Laser Cutting Nozzle
The ZNK D8 H10 M6 laser nozzle is a high-precision copper nozzle designed for fiber laser cutting heads. With an 8 mm nozzle diameter, 10 mm overall height and an M6 mounting thread, it delivers stable gas flow and precise focus for clean, burr-free cutting.

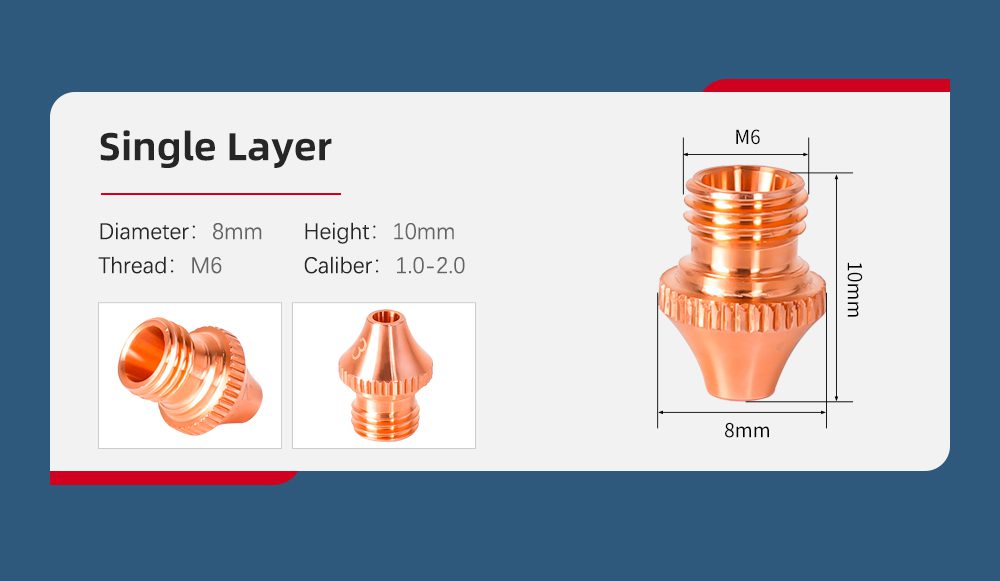

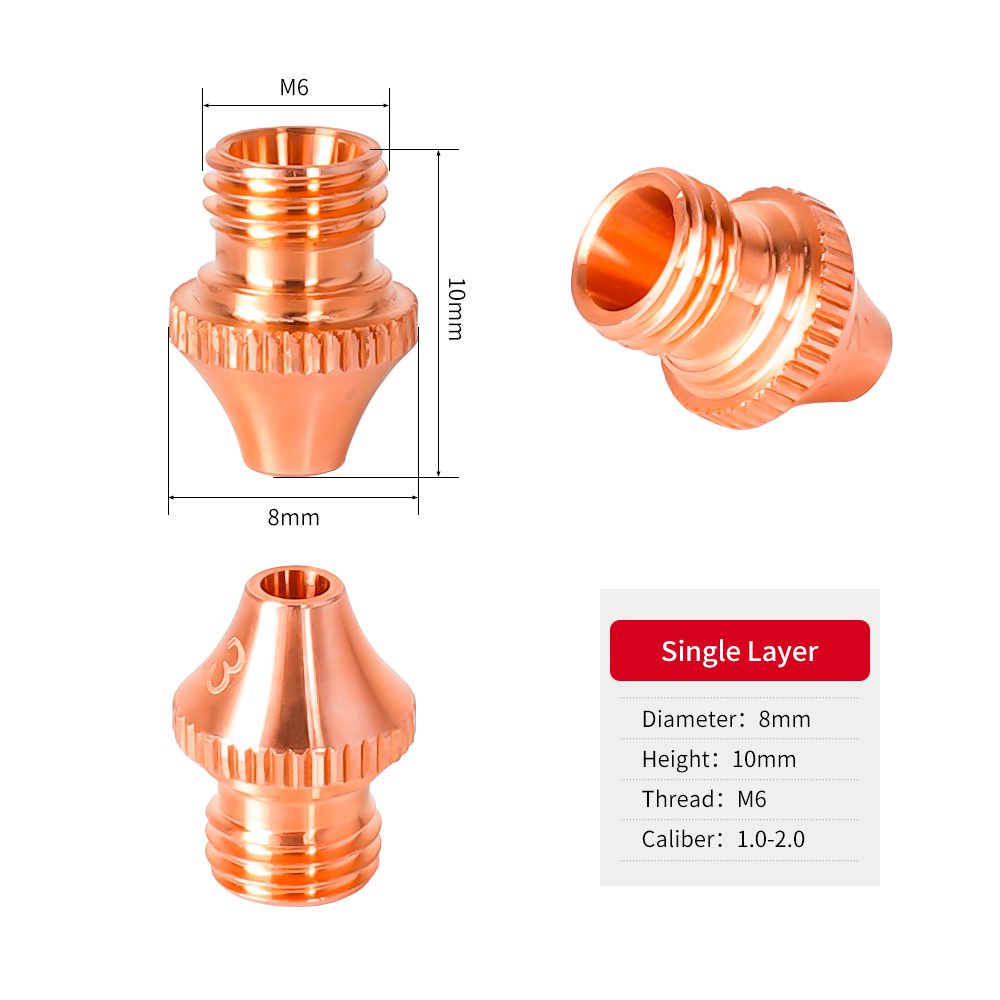

Technical Specifications
| Nozzle Diameter (D) | 8 mm |
| Nozzle Height (H) | 10 mm |
| Thread Size (M) | M6 |
| Material | High-purity Copper / Brass |
| Processing | CNC precision machining |
| Surface Finish | Polished / Nickel-plated (optional) |
Compatible Cutting Heads
- Precitec cutting heads (ProCutter, LightLine series)
- Trumpf laser cutting heads (BEO, D50 series)
- Raytools BM110 / BM111 series
- Universal fiber laser cutting heads with M6 nozzle seat
Applications
- Sheet metal fabrication and processing
- Stainless and carbon steel cutting (1-12 mm)
- Aluminum and copper plate cutting
- Automotive component manufacturing
- Advertising signage and metal crafts
Installation
- Power off the laser cutter and let the cutting head cool.
- Remove the existing nozzle by turning counter-clockwise.
- Clean the nozzle mounting face with a lint-free cloth.
- Align the M6 thread of the new D8 H10 M6 nozzle and tighten clockwise.
- Do not over-tighten – hand-tight with a wrench is sufficient.
- Confirm alignment with the coaxial sighting device before resuming operation.
Why Choose ZNK?
- Direct manufacturer – factory in Xuzhou, China with ISO-certified production.
- Strict quality control – every nozzle inspected to a diameter tolerance of ≤±0.02 mm.
- In stock – 2000+ nozzle models available, shipped within 3 days.
- OEM/ODM available – custom specifications welcome, MOQ 50 pcs.
