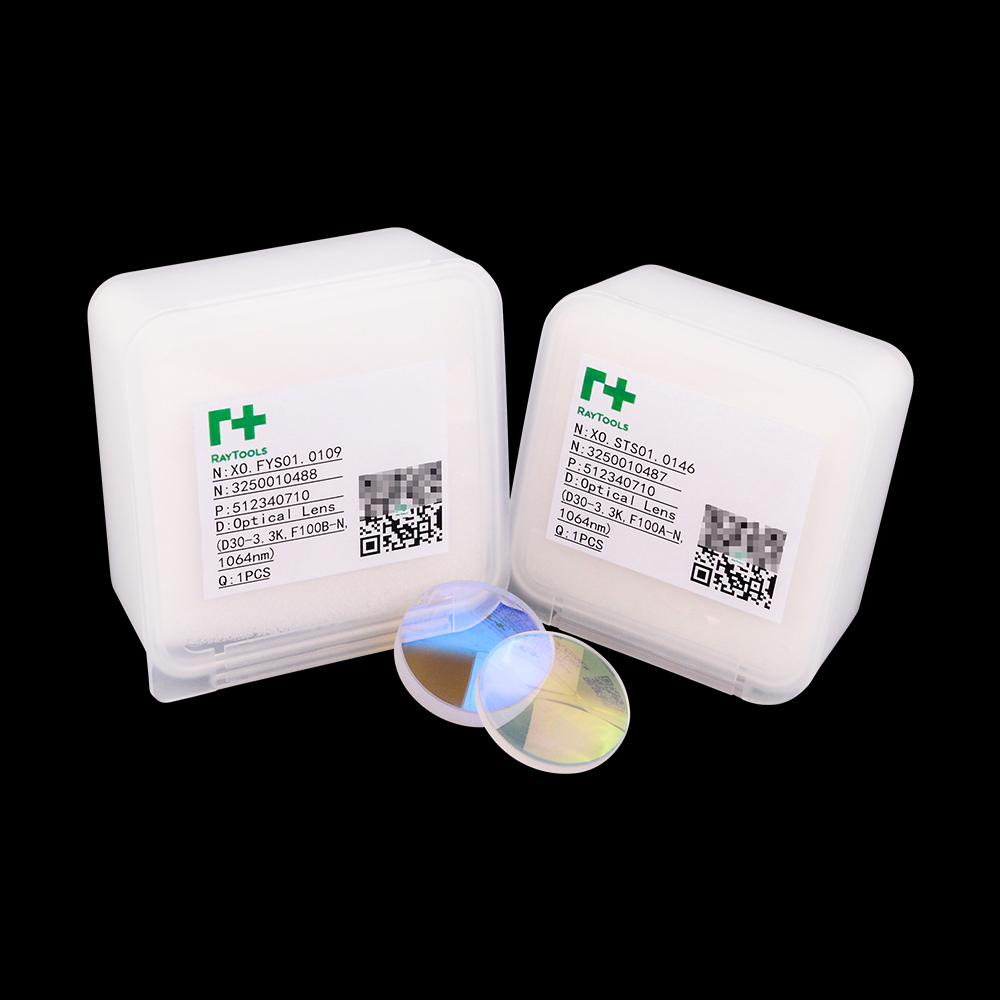

ZNK Converging Lens D30-F100 Composite — Raytools Type
This converging (focusing) lens is a precision optical consumable for fiber laser cutting heads. It is a composite design combining a double-convex and a crescent-shaped element to focus the laser beam onto the workpiece. Made from high-purity fused silica, the Ø30 mm diameter and 100 mm focal length are fixed by the model designation, and the part is an original Raytools item.
Specifications
| Model | D30-F100 Composite |
| Diameter (D) | 30 mm |
| Focal Length (F) | 100 mm |
| Construction | Composite (double convex + crescent shape) |
| Material | High-purity fused silica / quartz |
| Application | Beam focusing in fiber laser cutting heads |
Key Features
| Feature | Benefit |
|---|---|
| Composite converging design | Double-convex plus crescent elements focus the beam onto the workpiece. |
| 100 mm focal length | Fixed focal length set by the model designation for a repeatable focus position. |
| High-purity fused silica | Low-absorption optical material helps maintain beam quality during cutting. |
| Original Raytools part | Made to the Raytools optic specification for a reliable fit. |
Compatibility
Made for fiber laser cutting heads that use a Ø30 mm, F100 mm converging lens, and is an original Raytools type commonly used with Raytools cutting heads. If you are unsure whether this optic matches your cutting head, send us your head model and we will confirm before you order.
Applications
| Use Case | Details |
|---|---|
| Beam focusing | Focuses the laser beam onto the cutting surface |
| Production cutting | General-purpose fiber laser cutting |
| Maintenance | Replacement converging lens for worn or contaminated optics |
Why Choose ZNK?
| Specialist supplier | Focused on fiber laser cutting consumables and spare parts |
| Reliable fit | Dimensionally consistent parts for repeatable results |
| Technical support | We help you match the right consumable to your machine |
